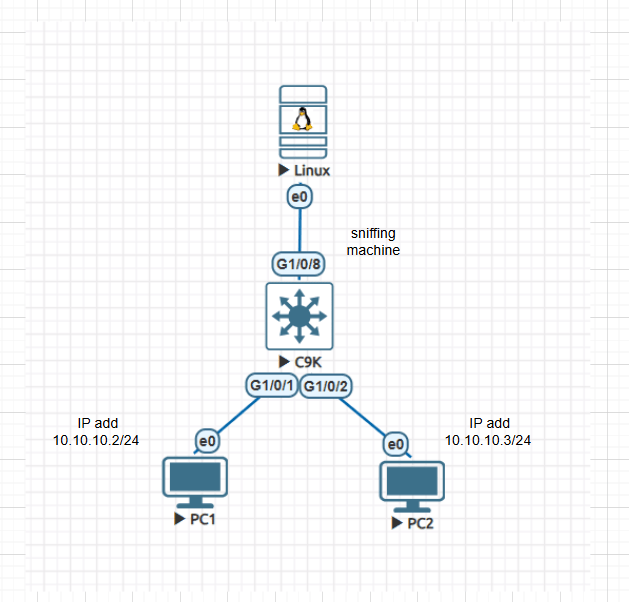

Connectivity diagram of setup to capture packets using TCP dump, to capture the MAC address table building process

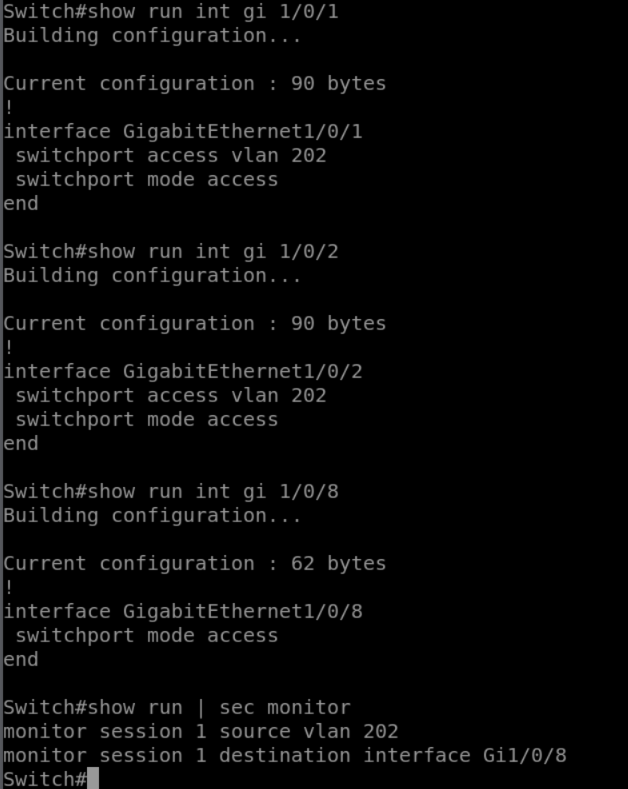

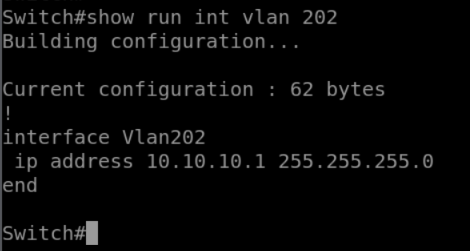

Interface configs and VLAN 202 on interface Gi 1/0/1 connected to PC1, Gi 1/0/2 connected to PC2 and port mirroring of VLAN 202 on interface Go 1/0/8

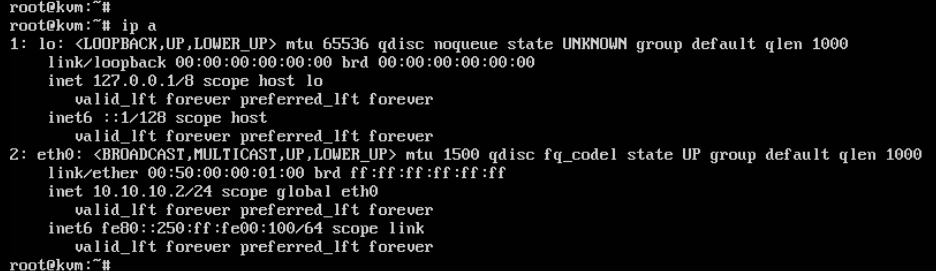

IP configs on PC1

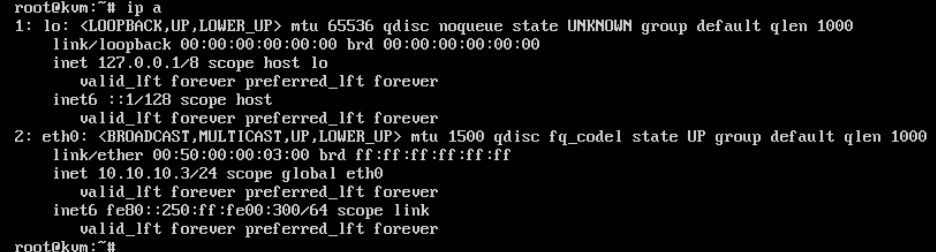

IP configs on PC2
Initially there are no MAC addresses learnt in the MAC address table

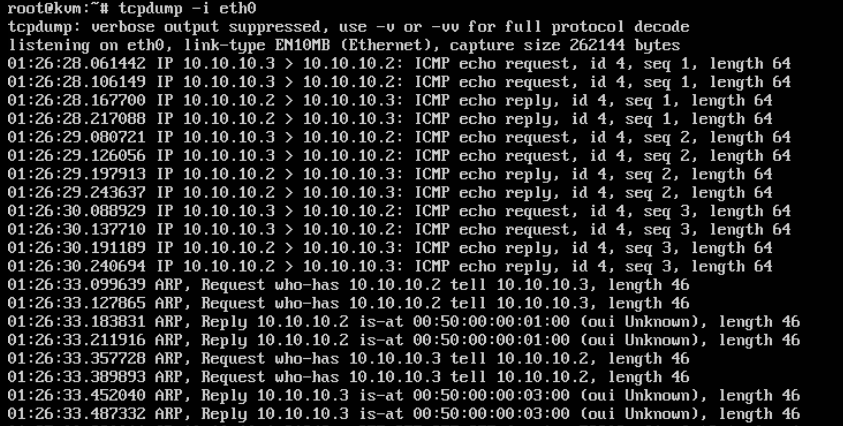

When We try to ping from PC1 to PC2, ARP request is generated for destination IP and the reply is generated, during this process the source MAC addresses are recorded against interfaces and MAC table is built

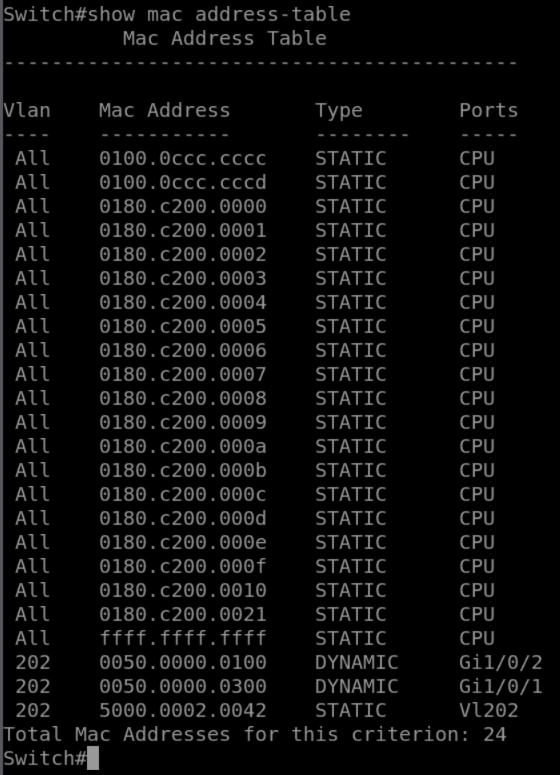

We finally see MAC address to port mapping on the switch
Similarly, we don’t see anything in ARP cache

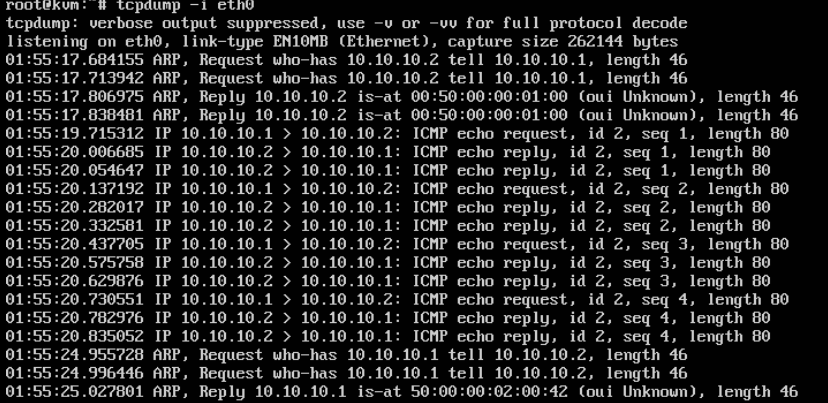

When we try to ping from switch to PC1

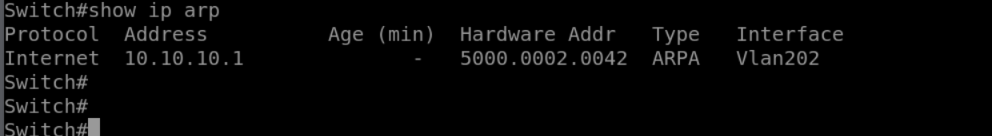

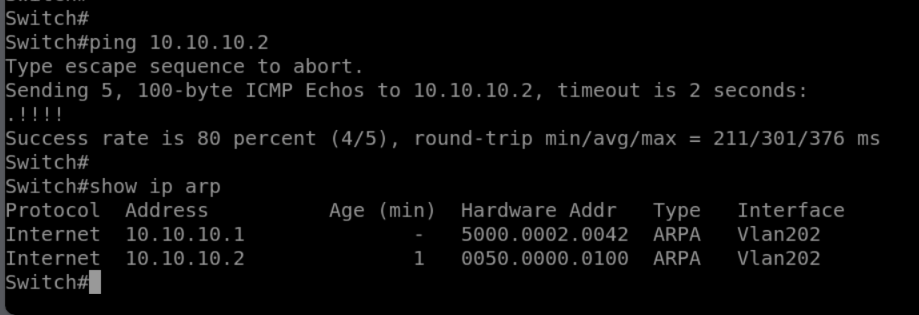

When we try to ping, we see 1st packet being dropped to discover MAC to IP mapping by ARP protocol and then ping gets successful and we finally see ARP entry
